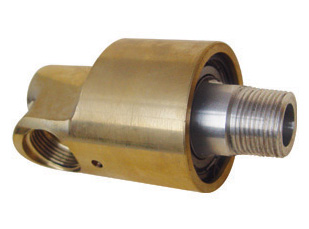

HD型旋转接头适用范围：
转速：n≤1000RPM
温度：t≤100℃
压力：≤1.0MPa
介质：水、空气、盐水、液压油
|
规格
|
型号
|
A
|
C
|
E
|
F1
|
L
|
L4
|
L6
|
L7
|
N
|
|
6
|
HD-6
|
R1/8
|
Rc1/8
|
39
|
20
|
76
|
66
|
22
|
12
|
5
|
|
8
|
HD-8
|
R1/4
|
Rc1/4
|
39
|
20
|
76
|
66
|
22
|
12
|
5
|
|
10
|
HD-10
|
R3/8
|
Rc3/8
|
55
|
28
|
105
|
90
|
30
|
15
|
8
|
|
15
|
HD-15
|
R1/2
|
Rc1/2
|
55
|
28
|
105
|
90
|
30
|
18
|
12
|
|
20
|
HD-20
|
R3/4
|
Rc3/4
|
62
|
31
|
115
|
95
|
30
|
20
|
16
|
|
25
|
HD-25
|
R1
|
Rc1
|
74
|
37
|
125
|
103
|
33
|
20
|
20
|
|
32
|
HD-32
|
R1-1/4
|
Rc1-1/4
|
90
|
45
|
156
|
128
|
42
|
25
|
30
|
|
40
|
HD-40
|
R1-1/2
|
Rc1-1/2
|
95
|
48
|
160
|
130
|
40
|
25
|
36
|
|
50
|
HD-50
|
R2
|
Rc2
|
122
|
61
|
220
|
182
|
60
|
35
|
48
|
|
65
|
HD-65
|
R2-1/2
|
Rc2-1/2
|
156
|
78
|
256
|
211
|
68
|
40
|
62
|
|
80
|
HD-80
|
R3
|
Rc3
|
160
|
80
|
286
|
231
|
90
|
35
|
75
|
|
100
|
HD-100
|
R4
|
Rc4
|
220
|
110
|
405
|
335
|
90
|
45
|
98
|
